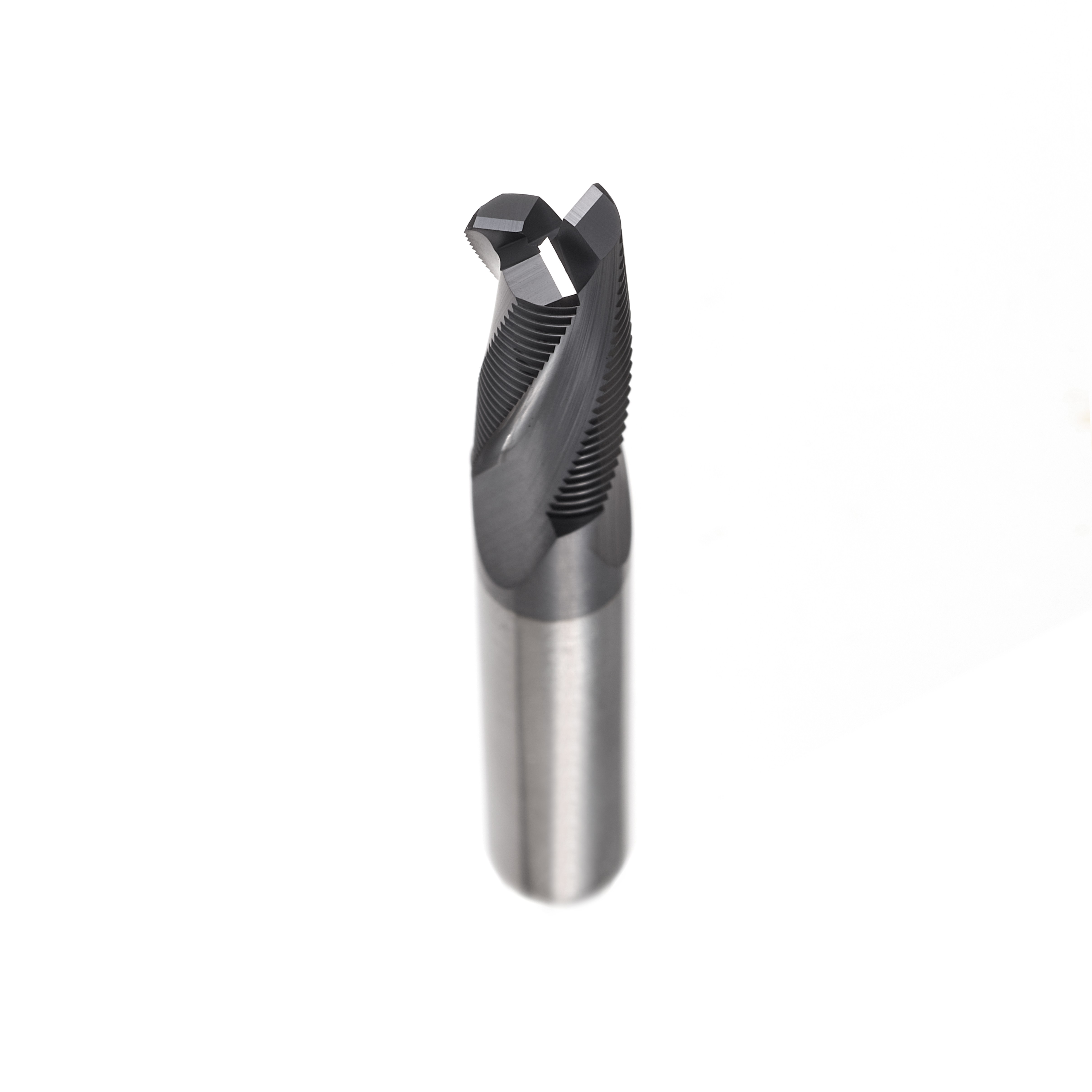

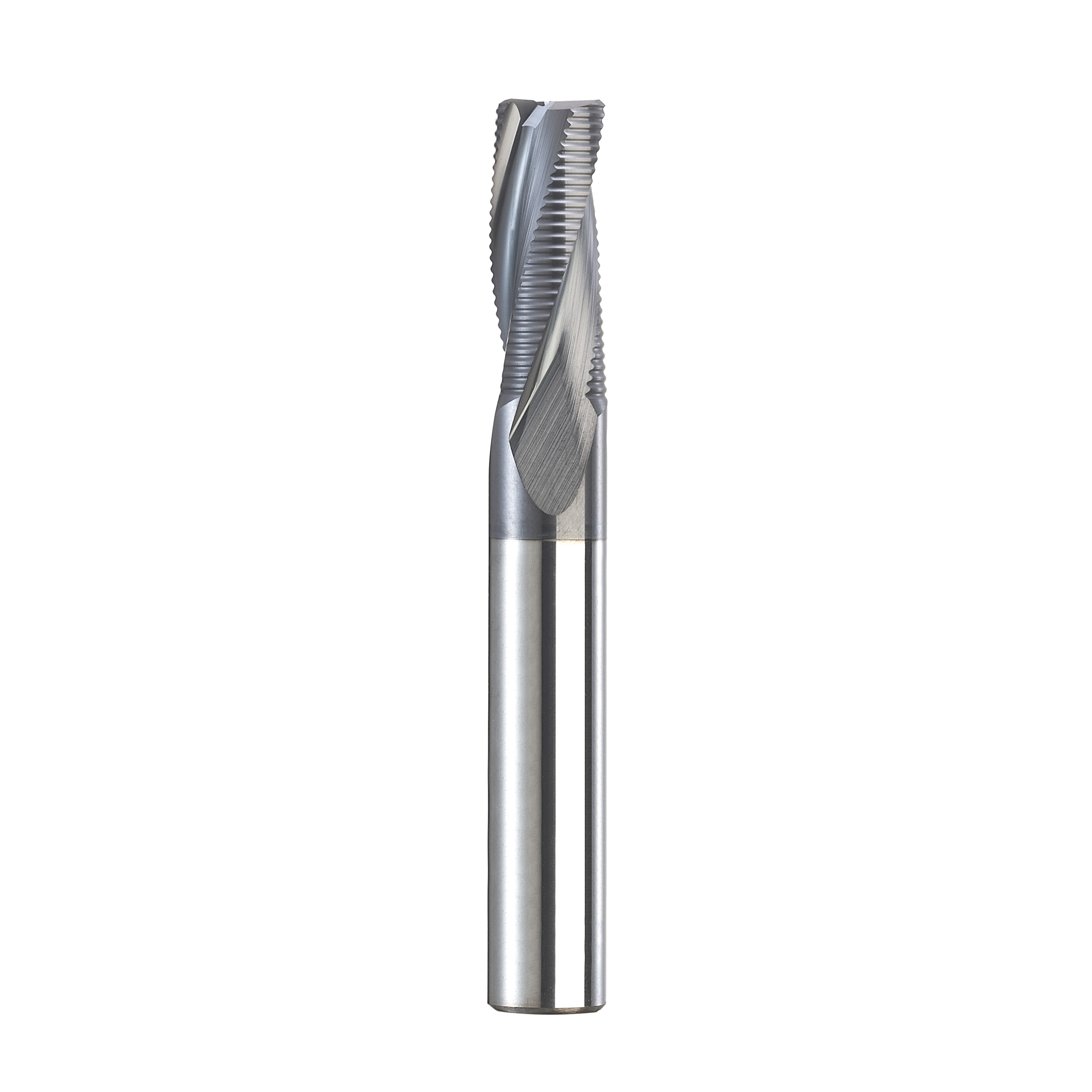

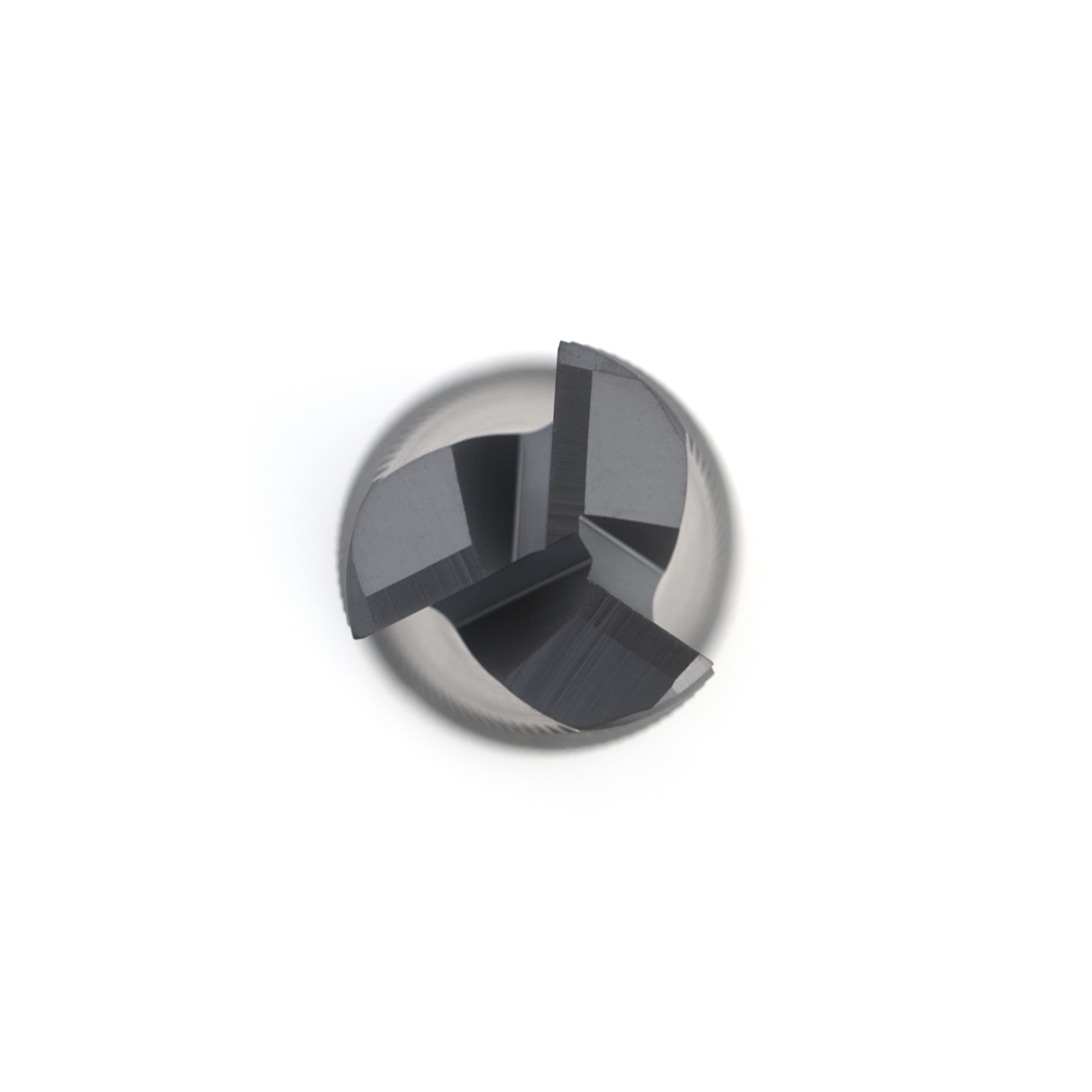

AJ320M3-Flutes Roughing End Mills
- Name
- 3-Flutes Roughing End Mills
- Model
- AJ320M
- Materials
- MG289 Micro Micro Carbide
- Coating
- TOP TIALN Coated
- HRC
- 45-50 Degree
- Helix Angle
- 20Degree
Feature
• Adopt top heat-resistant irradiation layer
• Excellent chip evacuation, most suitable for groove cutting
• Widely used in processing from ordinary steel to quenched and tempered steel
• Adopting fine tooth chip breaker, the surface roughness after processing is excellent.
Specification
| 型號 Model Number | 刃徑 d | 刃長 L1 | 柄徑 D | 全長 L |
|---|---|---|---|---|
| AJ320M-0600 | 6.0 | 15 | 6 | 50 |
| AJ320M-0800 | 8.0 | 20 | 8 | 60 |
| AJ320M-1000 | 10.0 | 25 | 10 | 75 |
| AJ320M-1200 | 12.0 | 30 | 12 | 75 |
| AJ320M-1600 | 16.0 | 40 | 16 | 100 |
| AJ320M-2000 | 20.0 | 50 | 20 | 100 |
