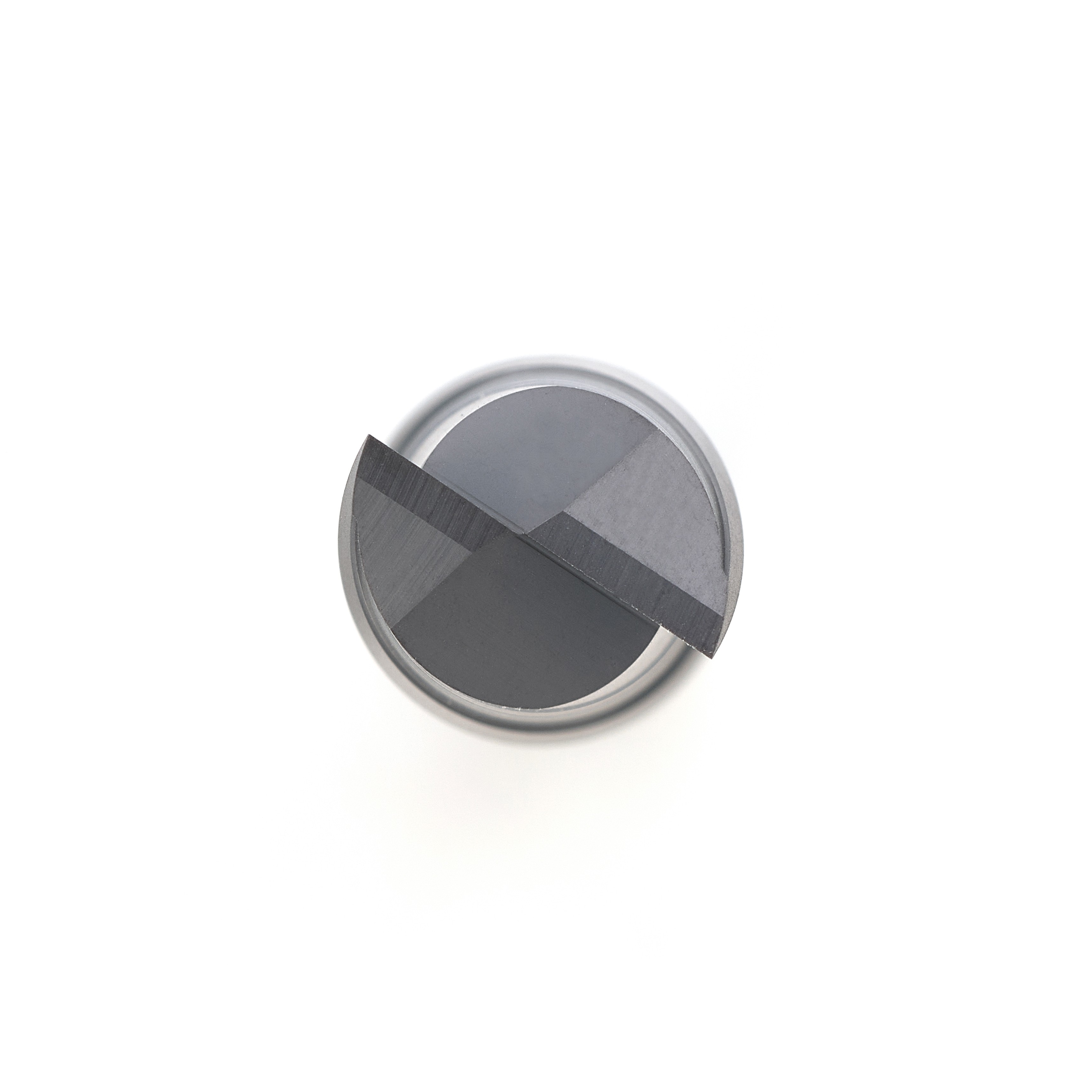

AA238LY2-Flutes Long-Flutes And Long-Shank End Mills
- Name
- 2-Flutes Long-Flutes And Long-Shank End Mills
- Model
- AA238LY
- Materials
- UMG207 Ultra Micro Carbide
- Coating
- TOP TIALN Coated
- HRC
- 55-60 Degree
- Helix Angle
- 38 Degree
Feature
• Standard hardness material processing (HRC 55)
• Micro grain materials with Top TLALN Coating
Specification
| 型號 Model Number | 刃徑 d | 刃長 L1 | 柄徑 D | 全長 L |
|---|---|---|---|---|
| AA238LY-0100-4-60-D4 | 1.0 | 4 | 4 | 60 |
| AA238LY-0100-8-60-D4 | 1.0 | 8 | 4 | 60 |
| AA238LY-0100-4-60-D6 | 1.0 | 4 | 6 | 60 |
| AA238LY-0100-8-60-D6 | 1.0 | 8 | 6 | 60 |
| AA238LY-0150-6-60-D4 | 1.5 | 6 | 4 | 60 |
| AA238LY-0150-12-60-D4 | 1.5 | 12 | 4 | 60 |
| AA238LY-0150-6-60-D6 | 1.5 | 6 | 6 | 60 |
| AA238LY-0150-12-60-D6 | 1.5 | 12 | 6 | 60 |
| AA238LY-0200-8-60-D4 | 2.0 | 8 | 4 | 60 |
| AA238LY-0200-16-60-D4 | 2.0 | 16 | 4 | 60 |
| AA238LY-0200-8-60-D6 | 2.0 | 8 | 6 | 60 |
| AA238LY-0200-16-60-D6 | 2.0 | 16 | 6 | 60 |
| AA238LY-0250-10-60-D4 | 2.5 | 10 | 4 | 60 |
| AA238LY-0250-20-60-D4 | 2.5 | 20 | 4 | 60 |
| AA238LY-0250-10-60-D6 | 2.5 | 10 | 6 | 60 |
| AA238LY-0250-20-60-D6 | 2.5 | 20 | 6 | 60 |
| AA238LY-0300-12-60-D4 | 3.0 | 12 | 4 | 60 |
| AA238LY-0300-12-60-D6 | 3.0 | 12 | 6 | 60 |
| AA238LY-0300-25-75-D4 | 3.0 | 25 | 4 | 75 |
| AA238LY-0300-25-75-D6 | 3.0 | 25 | 6 | 75 |
| AA238LY-0350-14-60-D4 | 3.5 | 14 | 4 | 60 |
| AA238LY-0350-14-60-D6 | 3.5 | 14 | 6 | 60 |
| AA238LY-0350-30-75-D4 | 3.5 | 30 | 4 | 75 |
| AA238LY-0350-30-75-D6 | 3.5 | 30 | 6 | 75 |
| AA238LY-0400-16-60-D4 | 4.0 | 16 | 4 | 60 |
| AA238LY-0400-16-60-D6 | 4.0 | 16 | 6 | 60 |
| AA238LY-0400-30-75-D4 | 4.0 | 30 | 4 | 75 |
| AA238LY-0400-30-75-D6 | 4.0 | 30 | 6 | 75 |
| AA238LY-0450-18-60-D6 | 4.5 | 18 | 6 | 60 |
| AA238LY-0450-30-75-D6 | 4.5 | 30 | 6 | 75 |
| AA238LY-0500-20-60-D6 | 5.0 | 20 | 6 | 60 |
| AA238LY-0550-20-60-D6 | 5.5 | 20 | 6 | 60 |
| AA238LY-0600-20-60-D6 | 6.0 | 20 | 6 | 60 |
| AA238LY-0650-60-75 | 6.5 | 30 | 8 | 75 |
| AA238LY-0700-30-75 | 7.0 | 30 | 8 | 75 |
| AA238LY-0750-30-75 | 7.5 | 30 | 8 | 75 |
| AA238LY-0800-30-75 | 8.0 | 30 | 8 | 75 |
| AA238LY-0850-40-100 | 8.5 | 40 | 10 | 100 |
| AA238LY-0900-40-100 | 9.0 | 40 | 10 | 100 |
| AA238LY-0950-40-100 | 9.5 | 40 | 10 | 100 |
| AA238LY-1000-50-100 | 10.0 | 50 | 10 | 100 |
| AA238LY-1200-50-100 | 12.0 | 50 | 12 | 100 |
| AA238LY-1600-65-150 | 16.0 | 65 | 16 | 150 |
| AA238LY-1600-80-150 | 16.0 | 80 | 16 | 150 |
| AA238LY-2000-65-150 | 20.0 | 65 | 20 | 150 |
| AA238LY-2000-80-150 | 20.0 | 80 | 20 | 150 |
