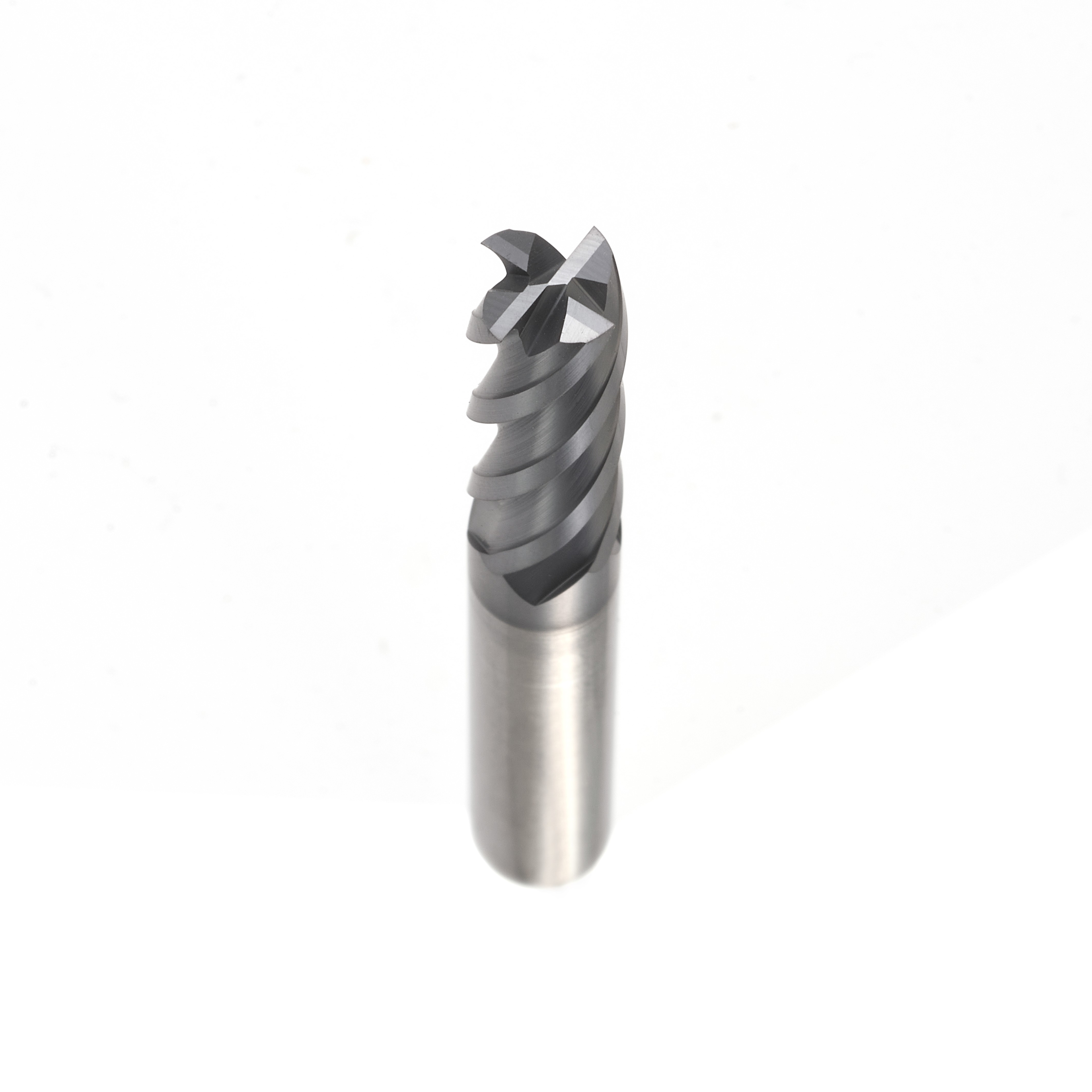

AA438L4-Flutes Long-Flutes End Mills
- Name
- 4-Flutes Long-Flutes End Mills
- Model
- AA438L
- Materials
- UMG207 Ultra Micro Carbide
- Coating
- TOP TIALN Coated
- HRC
- 55-60 Degree
- Helix Angle
- 38 Degree
Feature
• Standard hardness material processing (HRC 55)
• Micro grain materials with Top TLALN Coating
Specification
| 型號 Model Number | 刃徑 d | 刃長 L1 | 柄徑 D | 全長 L |
|---|---|---|---|---|
| AA438L-0100-D4 | 1.0 | 4 | 4 | 50 |
| AA438L-0100-D6 | 1.0 | 4 | 6 | 50 |
| AA438L-0150-D4 | 1.5 | 6 | 4 | 50 |
| AA438L-0150-D6 | 1.5 | 6 | 6 | 50 |
| AA438L-0200-D4 | 2.0 | 8 | 4 | 50 |
| AA438L-0200-D6 | 2.0 | 8 | 6 | 50 |
| AA438L-0250-D4 | 2.5 | 10 | 4 | 50 |
| AA438L-0250-D6 | 2.5 | 10 | 6 | 50 |
| AA438L-0300-D4 | 3.0 | 12 | 4 | 50 |
| AA438L-0300-D6 | 3.0 | 12 | 6 | 50 |
| AA438L-0350-D4 | 3.5 | 14 | 4 | 50 |
| AA438L-0350-D6 | 3.5 | 14 | 6 | 50 |
| AA438L-0400-D4 | 4.0 | 16 | 4 | 50 |
| AA438L-0400-D6 | 4.0 | 16 | 6 | 50 |
| AA438L-0450-D6 | 4.5 | 18 | 6 | 50 |
| AA438L-0500-D6 | 5.0 | 18 | 6 | 50 |
| AA438L-0550-D6 | 5.5 | 18 | 6 | 50 |
| AA438L-0600-D6 | 6.0 | 18 | 6 | 50 |
| AA438L-0650 | 6.5 | 26 | 8 | 60 |
| AA438L-0700 | 7.0 | 26 | 8 | 60 |
| AA438L-0750 | 7.5 | 26 | 8 | 60 |
| AA438L-0800 | 8.0 | 26 | 8 | 60 |
| AA438L-0850 | 8.5 | 30 | 10 | 75 |
| AA438L-0900 | 9.0 | 30 | 10 | 75 |
| AA438L-0950 | 9.5 | 35 | 10 | 75 |
| AA438L-1000 | 10.0 | 35 | 10 | 75 |
| AA438L-1100 | 11.0 | 35 | 12 | 75 |
| AA438L-1200 | 12.0 | 35 | 12 | 75 |
| AA438L-1600 | 16.0 | 50 | 16 | 100 |
| AA438L-2000 | 20.0 | 50 | 20 | 100 |
