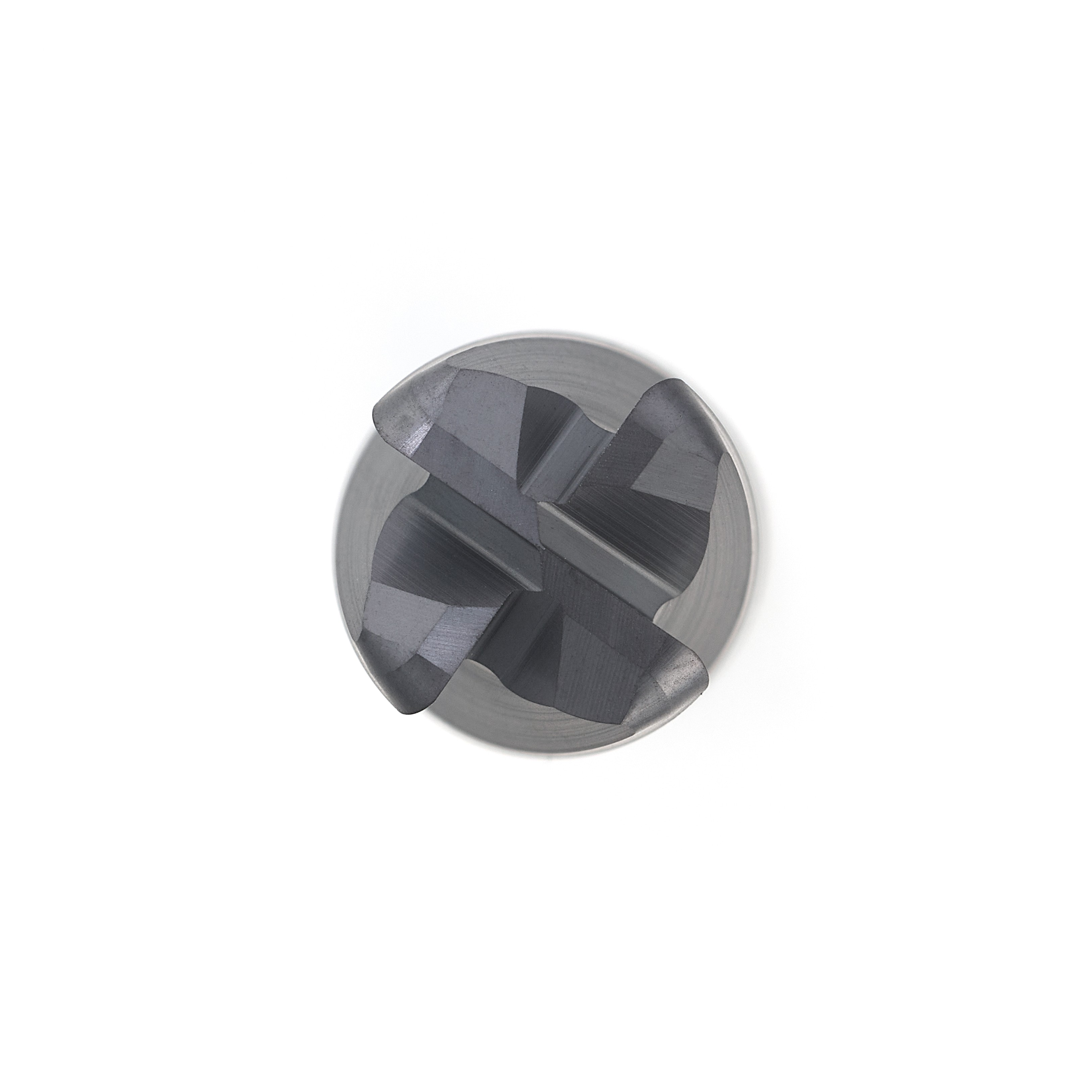

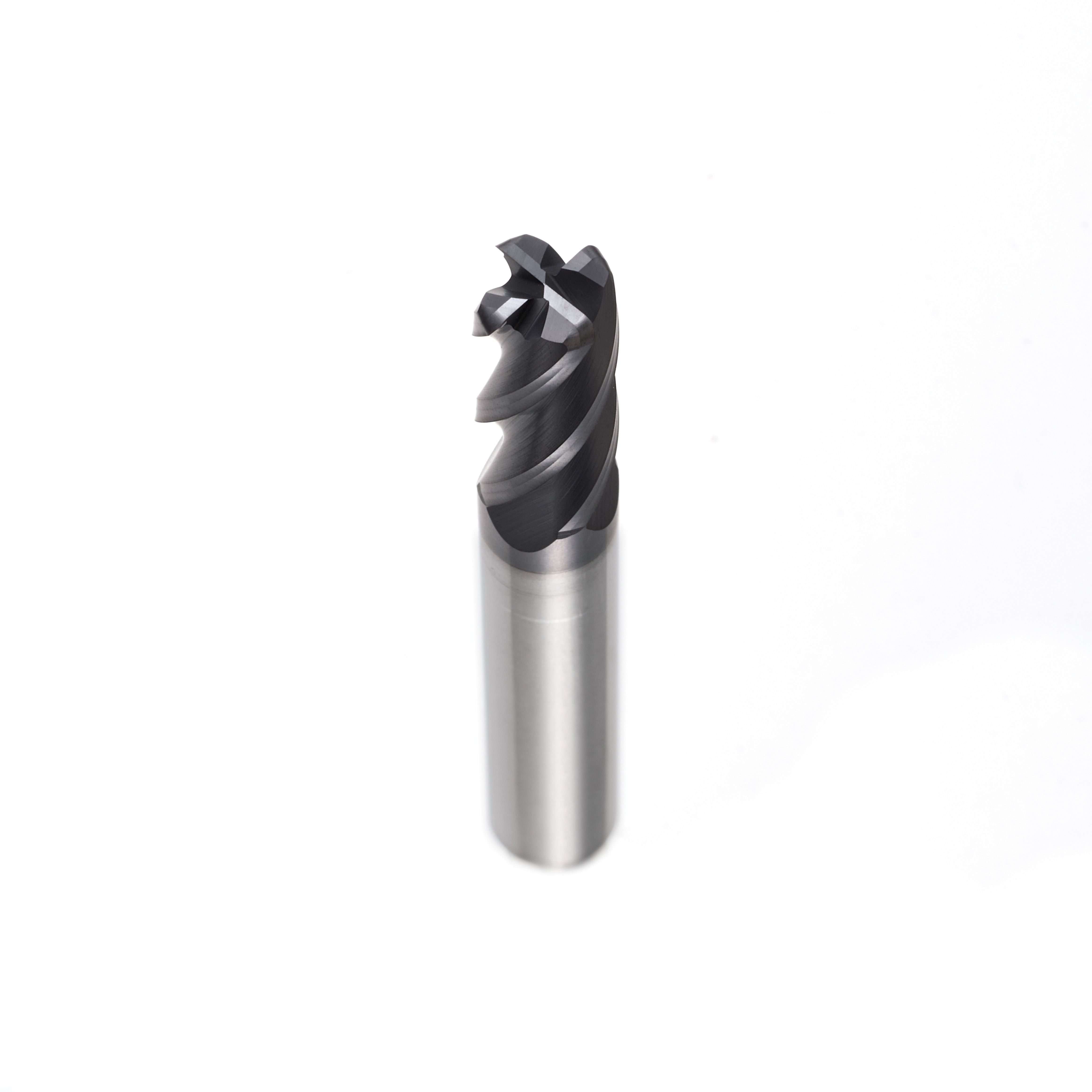

SS-AZ438M4-Flutes Corner-Radius Medium-Flutes End Mills
- Name
- 4-Flutes Corner-Radius Medium-Flutes End Mills
- Model
- SS-AZ438M
- Materials
- UMG207 Ultra Micro Carbide
- Coating
- TOP TIALN Coated
- HRC
- 55-60 Degree
- Helix Angle
- 38 Degree
Feature
• Adopt top heat-resistant irradiation layer
• Widely used in processing stainless steel to heat-treated steel
Specification
| 型號 Model Number | 刃徑 d | R角 R | 刃長 L1 | 柄徑 D | 全長 L |
|---|---|---|---|---|---|
| SS-AZ438M-015-R02-D4 | 1.5 | 0.2 | 3.75 | 4 | 50 |
| SS-AZ438M-015-R03-D4 | 1.5 | 0.3 | 3.75 | 4 | 50 |
| SS-AZ438M-015-R05-D4 | 1.5 | 0.5 | 3.75 | 4 | 50 |
| SS-AZ438M-020-R02-D4 | 2.0 | 0.2 | 5 | 4 | 50 |
| SS-AZ438M-020-R03-D4 | 2.0 | 0.3 | 5 | 4 | 50 |
| SS-AZ438M-020-R05-D4 | 2.0 | 0.5 | 5 | 4 | 50 |
| SS-AZ438M-030-R02-D4 | 3.0 | 0.2 | 7.5 | 4 | 50 |
| SS-AZ438M-030-R03-D4 | 3.0 | 0.3 | 7.5 | 4 | 50 |
| SS-AZ438M-030-R05-D4 | 3.0 | 0.5 | 7.5 | 4 | 50 |
| SS-AZ438M-040-R02-D4 | 4.0 | 0.2 | 10 | 4 | 50 |
| SS-AZ438M-040-R03-D4 | 4.0 | 0.3 | 10 | 4 | 50 |
| SS-AZ438M-040-R05-D4 | 4.0 | 0.5 | 10 | 4 | 50 |
| SS-AZ438M-060-R05-D6 | 6.0 | 0.5 | 15 | 6 | 50 |
| SS-AZ438M-060-R10-D6 | 6.0 | 1.0 | 15 | 6 | 50 |
| SS-AZ438M-060-R15-D6 | 6.0 | 1.5 | 15 | 6 | 50 |
| SS-AZ438M-060-R20-D6 | 6.0 | 2.0 | 15 | 6 | 50 |
| SS-AZ438M-080-R05 | 8.0 | 0.5 | 20 | 8 | 60 |
| SS-AZ438M-080-R10 | 8.0 | 1.0 | 20 | 8 | 60 |
| SS-AZ438M-080-R15 | 8.0 | 1.5 | 20 | 8 | 60 |
| SS-AZ438M-080-R20 | 8.0 | 2.0 | 20 | 8 | 60 |
| SS-AZ438M-100-R05 | 10.0 | 0.5 | 25 | 10 | 75 |
| SS-AZ438M-100-R10 | 10.0 | 1.0 | 25 | 10 | 75 |
| SS-AZ438M-100-R15 | 10.0 | 1.5 | 25 | 10 | 75 |
| SS-AZ438M-100-R20 | 10.0 | 2.0 | 25 | 10 | 75 |
| SS-AZ438M-120-R05 | 12.0 | 0.5 | 30 | 12 | 75 |
| SS-AZ438M-120-R10 | 12.0 | 1.0 | 30 | 12 | 75 |
| SS-AZ438M-120-R15 | 12.0 | 1.5 | 30 | 12 | 75 |
| SS-AZ438M-120-R20 | 12.0 | 2.0 | 30 | 12 | 75 |
| SS-AZ438M-160-R05 | 16.0 | 0.5 | 40 | 16 | 100 |
| SS-AZ438M-160-R10 | 16.0 | 1.0 | 40 | 16 | 100 |
| SS-AZ438M-160-R15 | 16.0 | 1.5 | 40 | 16 | 100 |
| SS-AZ438M-160-R20 | 16.0 | 2.0 | 40 | 16 | 100 |
| SS-AZ438M-200-R05 | 20.0 | 0.5 | 50 | 20 | 100 |
| SS-AZ438M-200-R10 | 20.0 | 1.0 | 50 | 20 | 100 |
| SS-AZ438M-200-R15 | 20.0 | 1.5 | 50 | 20 | 100 |
| SS-AZ438M-200-R20 | 20.0 | 2.0 | 50 | 20 | 100 |
