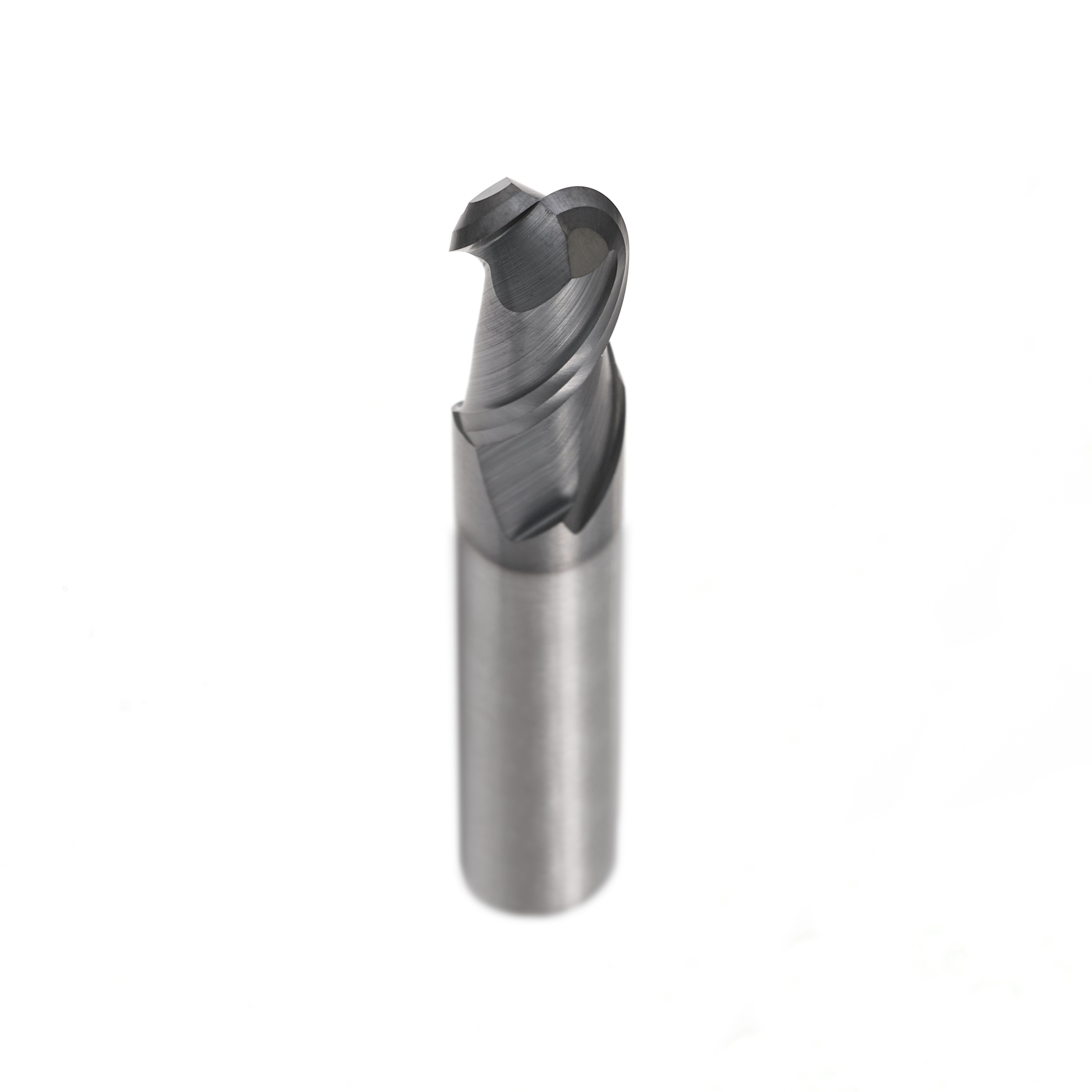

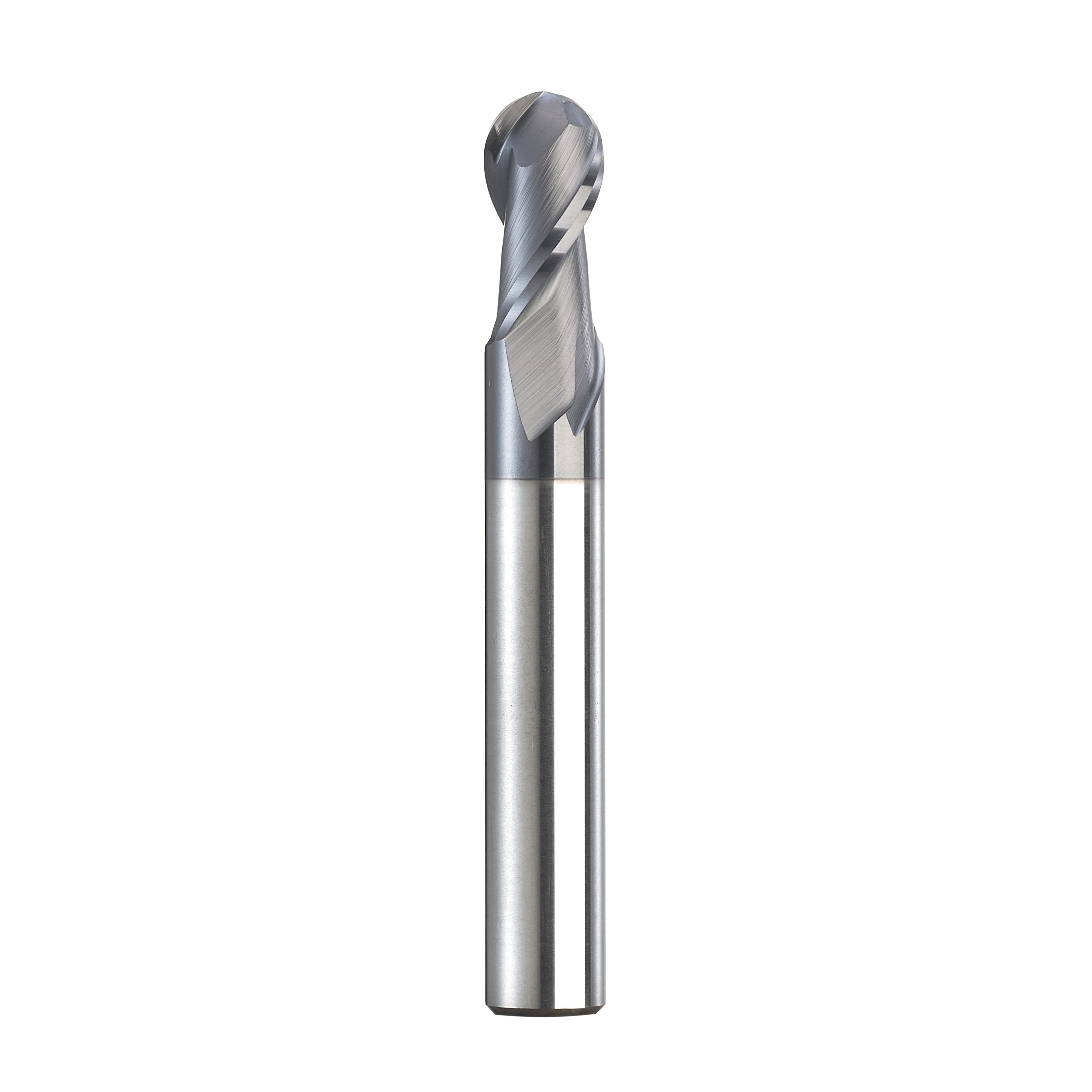

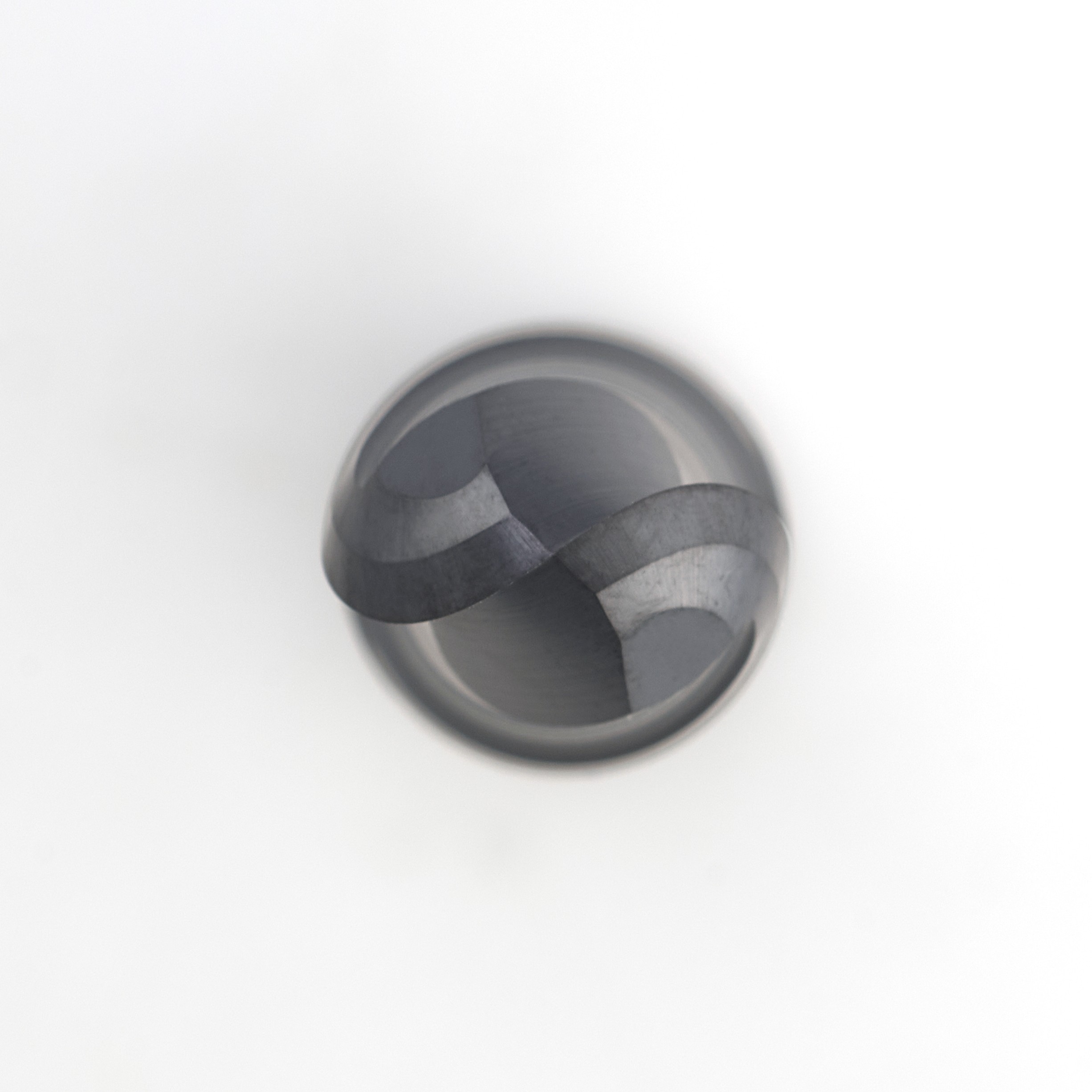

AK238M2-Flutes Medium Ball End Mills
- Name
- 2-Flutes Medium Ball End Mills
- Model
- AK238M
- Materials
- UMG207 Ultra Micro Carbide
- Coating
- TOP TIALN Coated
- HRC
- 55-60 Degree
- Helix Angle
- 38 Degree
Feature
• Adopting an excellent heat-resistant enzymatic layer, the surface roughness after processing is excellent.
• General-purpose 2-edge ball end mill, widely used in curved surface processing, etc.
• Widely used in processing stainless steel to carbide steel
Specification
| 型號 Model Number | R角 R | 刃長 L1 | 柄徑 D | 全長 L |
|---|---|---|---|---|
| AK238M-R0050-D4 | 0.5 | 2 | 4 | 50 |
| AK238M-R0050-D6 | 0.5 | 2 | 6 | 50 |
| AK238M-R0750-D4 | 0.75 | 3 | 4 | 50 |
| AK238M-R0750-D6 | 0.75 | 3 | 6 | 50 |
| AK238M-R0100-D4 | 1.0 | 4 | 4 | 50 |
| AK238M-R0100-D6 | 1.0 | 4 | 6 | 50 |
| AK238M-R0150-D4 | 1.5 | 6 | 4 | 50 |
| AK238M-R0150-D6 | 1.5 | 6 | 6 | 50 |
| AK238M-R0200-D4 | 2.0 | 8 | 4 | 50 |
| AK238M-R0200-D6 | 2.0 | 8 | 6 | 50 |
| AK238M-R0250-D6 | 2.5 | 10 | 6 | 50 |
| AK238M-R0300-D6 | 3.0 | 12 | 6 | 50 |
| AK238M-R0350 | 3.5 | 14 | 8 | 60 |
| AK238M-R0400 | 4.0 | 16 | 8 | 60 |
| AK238M-R0450 | 4.5 | 18 | 10 | 75 |
| AK238M-R0500 | 5.0 | 20 | 10 | 75 |
| AK238M-R0600 | 6.0 | 24 | 12 | 75 |
| AK238M-R0800 | 8.0 | 32 | 16 | 100 |
| AK238M-R1000 | 10.0 | 40 | 20 | 100 |
