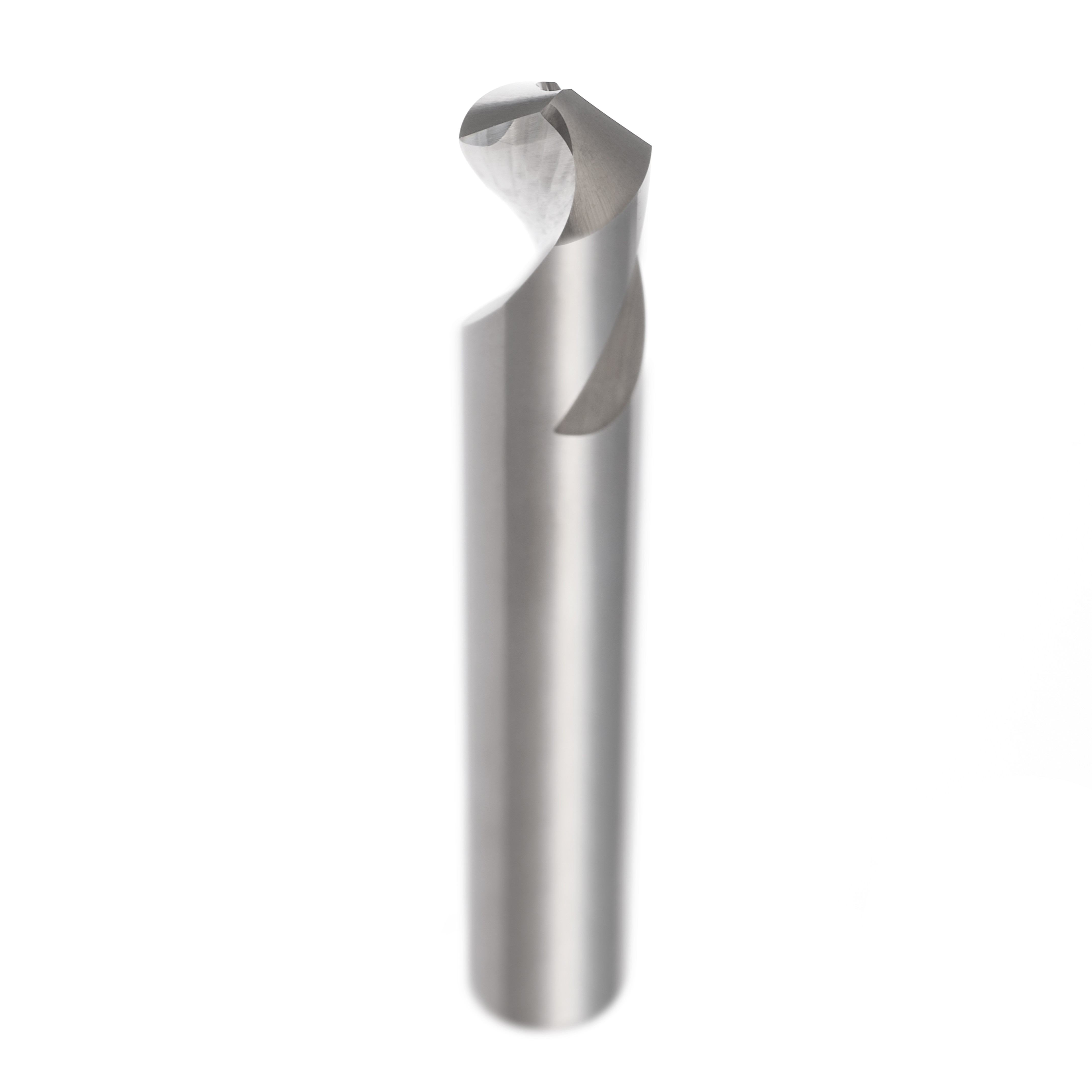

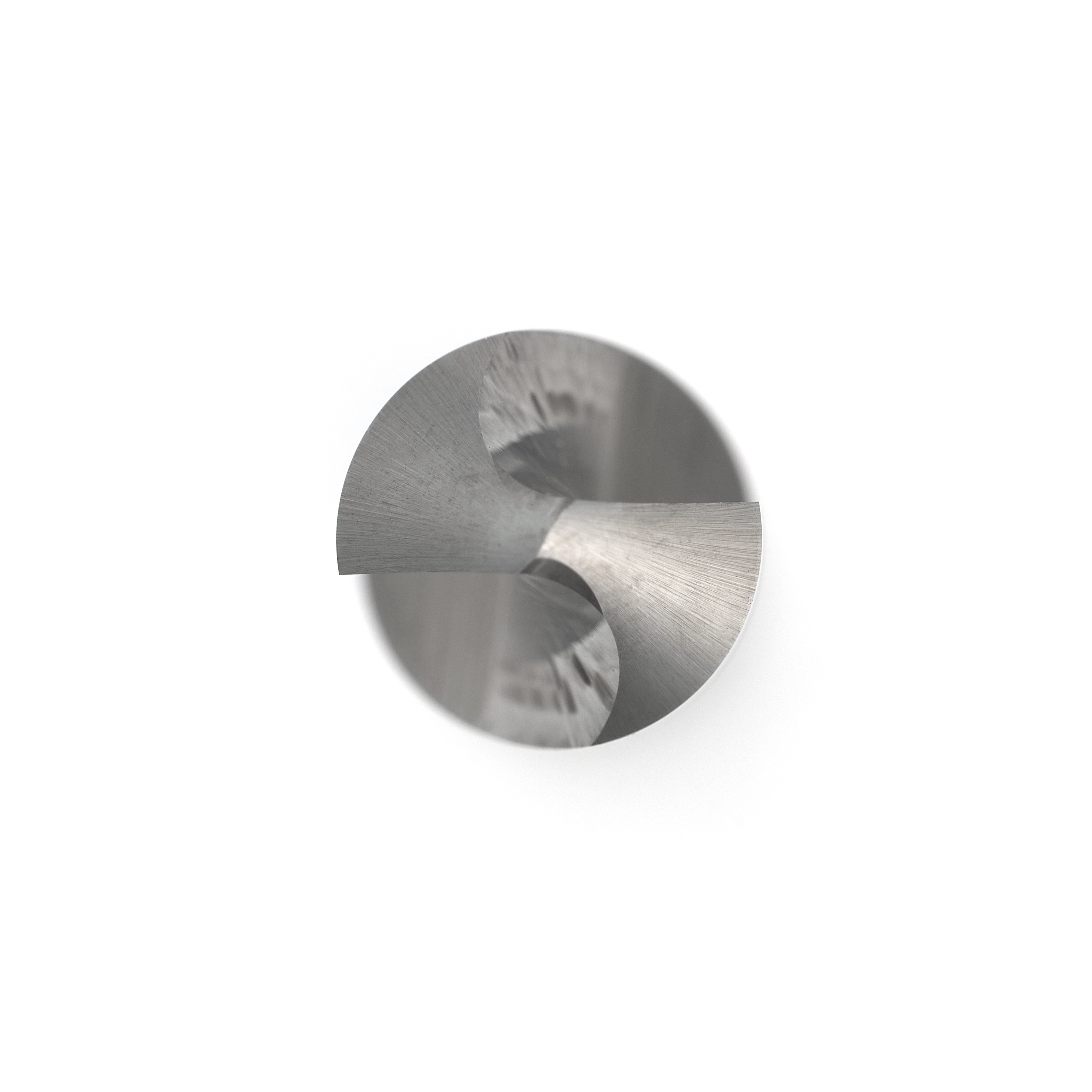

AF220A902-Flutes Medium Spotting Drills
- Name
- 2-Flutes Medium Spotting Drills
- Model
- AF220A90
- Materials
- MG 289 Micro Micro Carbide
- HRC
- 45-50 Degree
- Helix Angle
- Tip Angle 90 Degree
Feature
•The most suitable fixed-point drill for positioning and chamfering during drilling
Specification
| 型號 Model Number | 刃徑 d | 刃長 L1 | 柄徑 D | 全長 L |
|---|---|---|---|---|
| AF220A90-0200 | 2.0 | 8 | 2 | 50 |
| AF220A90-0300 | 3.0 | 10 | 3 | 50 |
| AF220A90-0400 | 4.0 | 12 | 4 | 60 |
| AF220A90-0500 | 5.0 | 14 | 5 | 60 |
| AF220A90-0600 | 6.0 | 16 | 6 | 75 |
| AF220A90-0800 | 8.0 | 20 | 8 | 75 |
| AF220A90-1000 | 10.0 | 25 | 10 | 100 |
| AF220A90-1200 | 12.0 | 30 | 12 | 100 |
| AF220A90-1400 | 14.0 | 35 | 14 | 100 |
| AF220A90-1600 | 16.0 | 40 | 16 | 100 |
| AF220A90-2000 | 20.0 | 45 | 20 | 100 |
